ASHLY > KLR High Performance Amplifiers

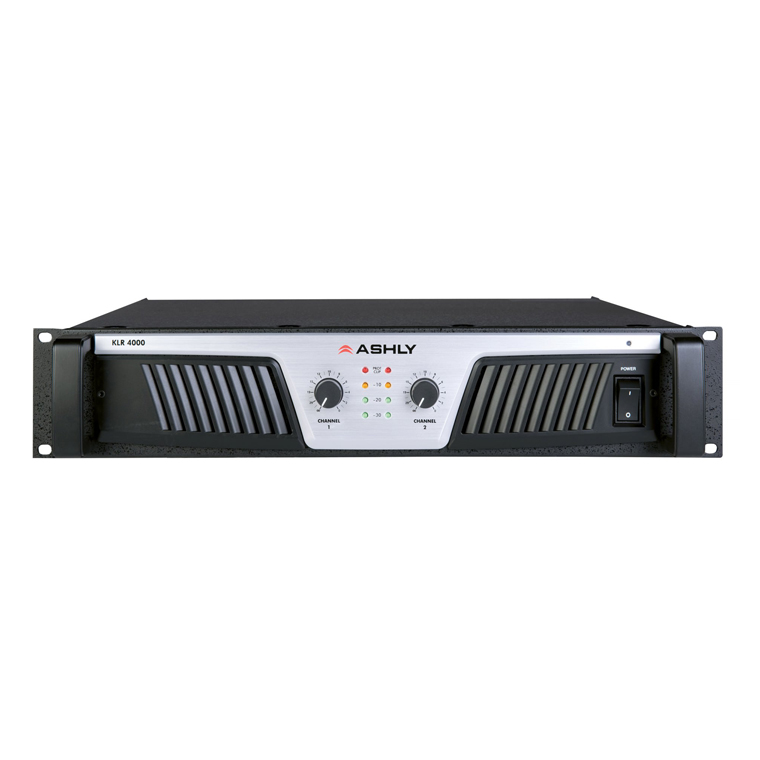

KLR4000
KLR High Performance Amplifiers
Ashly의 KLR 시리즈 앰프는 고효율, 경량의 특징과 함께 전문적인 품질 및 가치를 제공하는 최신 기술을 가진 매우 합리적인 가격의 2채널 고출력 앰프입니다.
KLR 앰프는 전문적인 음향 시스템을 구축하는데 있어서 소리의 완성과 함께 안정된 오디오 성능을 제공하도록 최적화되었습니다.
KLR 시리즈는 모든 모델이 108dB에서 110dB까지 signal-to-noise 비율 등급이 적용되어 소음이 적습니다.
Model | KLR-4000 |
Rated Power Output per channel Stereo Mode, both channels driven |
|
8Ω, 20 Hz- 20kHz, 1% THD | 850W |
4Ω, 20 Hz- 20kHz, 1% THD | 1400W |
2Ω, 20 Hz- 20kHz, 1% THD | 2000W |
70V Output, 20Hz-20kHz, 1% THD, per channel | X |
Bridged Momo Mode |
|
4Ω, 20 Hz- 20kHz, 1% THD | 4000W |
Line Current Draw (all channels drive @4Ω) |
|
ldle | 1.05A |
1/8th Power Pink Noise | 14.0A |
1/3 Power Sine Wave | 19.8A |
S/N (20 Hz-20kHz, unweighted) | >109dB |
Thermal Dissipation (all channels driven @4Ω) |
|
ldle (BTU/hr) | 171 |
1/8th Power Pink Noise (BTU/hr) | 2489 |
1/3 Power Sine Wave (BTU/hr) | 3516 |
|
|
Input Gain Switch | 1V, 26dB,32dB |
Signal to Noise Ratio |
|
(20Hz-20kHz, rated power @ 8Ω unweighted) | >109dB |
Output Circuitry | 2 Step Class H |
Weight | 26.7 lbs (12kg) |
Frequency Response 1W @8Ω 20Hz-20kHz (-3dB down point) | +0.3dB 5Hz - 70kHz |
Damping Factor -100Hz @ rated power @8Ω | >380 |
THD 20Hz-20kHz | 10dB below rated output @4Ω |
Input Impedance | 12㏀, balanced |
HPF | 30Hz, 50Hz, off(12dB/Oct) |
Amplifier protection | Output Overcrrent, DC Output, Chassis Temperature, Mains Breaker (KLR-5000 uses internal Mains Fuse) |
Cooling | Variable Speed Fan, Front-to-Rear Air Flow |
Front Panel Indicators | Protection/Clip,Signal,Power |
Attenuators | Per Channel, Front Panel |
Input Connectors, each channel | 3-pin Euroblock, XLR, ¼” TRS Phone Jack |
Output Connectors, each channel | 4-pin SpeakON® type |
Operating Temperature/Humidity | Temperature: -10C to +40C/Humidity: 0% to 90% |
Power Cable Connector | 3-prong NEMA 5–15 (5–20 for KLR-5000) |
Dimensions | 19” W x 3.5” H x 16” D |
